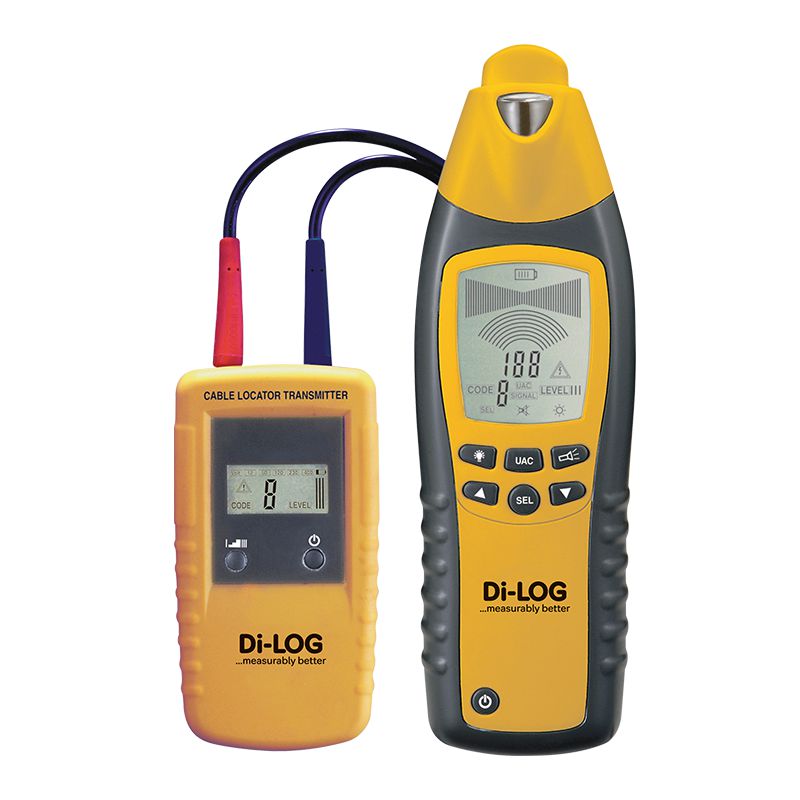

Di-Log DL2080 Cable Locator Set

Di-Log DL2080 Cable Locator Set

Di-Log

    • excludes VAT at 20%

Cable Locator Set

Di-Log DL2080

  • The DL2080 can trace underground cables down to 2.5 m
  • Transmitter with digitally coded signal for clear signal identification
  • Receiver with LCD display signal code and strength identification and voltage indication
  • Automatic or manual adjustment of receiving signal sensitivity
  • The DL2080 operates on both live and dead cables.

The Di-Log DL2080 Cable Locator Set is a must-have for any industry expert. This set allows for easy tracing of underground cables up to 2.5m deep with its transmitter and receiver. The digitally coded signal, LCD display, and voltage indication make identification and detection precise. It also offers the convenience of automatic or manual adjustment of signal sensitivity and the ability to work with both live and dead cables.


.



Frequency range 0 – 60Hz
Humidity without condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative
Mains voltage detection 0 – 0.4 m
Operating Altitude: Transmitter up to 2000m, Receiver up to 2000m
Operating temperature Transmitter: 0 to 40 °C, Receiver: 0 to 40 °C
Output signal 125 Hz
Over voltage category CAT III 300 V
Power supply 9 V and 2 x AAA batteries
Safety EN 61010-1
Storage temperature Transmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C
Tracing depth 0 – 2.5 m wall / underground
Voltage range 12, 50, 120, 230 & 400 V
