FuseBox Recessed and Surface Frames

🔧 FuseBox Recessed and Surface Frames – Product Information & Specifications

Overview

FuseBox recessed and surface frames are specially designed enclosures used to house FuseBox consumer units and distribution boards. These frames provide secure, professional, and aesthetically pleasing installations, whether mounted flush into a wall (recessed) or directly onto a surface (surface-mounted). They help achieve compliance with wiring regulations and provide a cleaner finish, especially in domestic and commercial settings.

---

🔩 Types of Frames Available

✅ Recessed Frames

• Designed to be installed flush into plasterboard or masonry walls

• Ideal for modern, low-profile electrical installations

• Minimises visual impact for a neater finish

• Includes adjustable fixing brackets for ease of installation

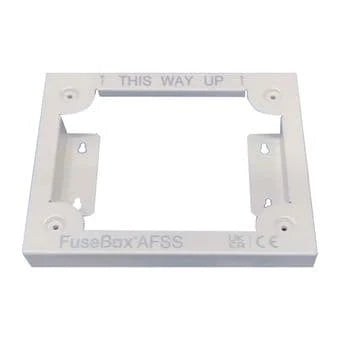

✅ Surface Frames

• Surface-mounted, sitting directly on the wall surface

• Suitable for installations where recessing is not practical

• Faster to install and access in retrofit scenarios

• Rugged construction for durable, long-lasting performance

---

📦 Compatibility – Which Boards Do They Fit?

FuseBox recessed and surface frames are designed to suit the following FuseBox consumer units:

Recessed Frames

• AFMF10 - F2007M, F2006MX, F3007MZ, F2008M, F3008RA and F3008RA
• AFMF14 - F2011M, F2010MX, F3011MZ and F3012M
• AFMF18 - F2015M, F2014MX, F3015MZ, F3016M and F3014DT
• AFMF24 - F2021M, F2020MX, F3021MZ and F3022M
• AFMF28 - F2022M, F2021MX, F3023MZ, F3024M and F3024MDT
• AFMF36 - F2030M, F2029MX, F3031MZ. F3032M and F3032MDT

Surface Frames

• AFSS10 - F2007M, F2006MX, F3007MZ, F2008M, F3008RA and F3008RA
• AFSS14 - F2011M, F2010MX, F3011MZ and F3012M
• AFSS18 - F2015M, F2014MX, F3015MZ, F3016M and F3014DT
• AFSS24 - F2021M, F2020MX, F3021MZ and F3022M
• AFSS28 - F2022M, F2021MX, F3023MZ, F3024M and F3024MDT
• AFSS36 - F2030M, F2029MX, F3031MZ. F3032M and F3032MDT

🔧 Always check the manufacturer’s guidance or product datasheet to ensure frame-to-board compatibility, especially when working with older or discontinued models.

---

✅ Benefits of Using FuseBox Frames

• Provides a clean, professional appearance

• Enhances electrical safety by protecting wiring and components

• Simplifies maintenance and future board upgrades

• Helps meet installation standards for residential and commercial settings

---

🛠️ Installation Notes

• Ensure the wall space is suitable for recessed applications (stud or block).

• Allow adequate clearance for cable entries and maintenance.

• Surface frames require a flat, solid mounting area for correct fitment.

• Compatible boards should be fixed securely into the frame using provided brackets or holes.
