Di-Log SL350 Professional Plus Solar PV Test Kit

Di-Log
Price:
£254.98 ex VAT
(£305.98 inc VAT)

Currently out of stock. Add to cart to backorder!

FREE 30 DAY RETURNS

Professional Plus Solar PV Test Kit

Di-Log SL350

  • Solar Irradiance Measurement to 1400W/m2
  • Inbuilt Cell Temperature Sensor and External Cell Temperature Probe
  • Roof Pitch Inclinometer
  • Accurate AC/DC Current Measurement
  • Versatile Voltage Measurement
  • Comprehensive Measurement Capabilities including functions such as LoZ, Inrush Current, and Variable Frequency Drive
  • For Domestic and Commercial Solar Thermal and Solar PV Installation

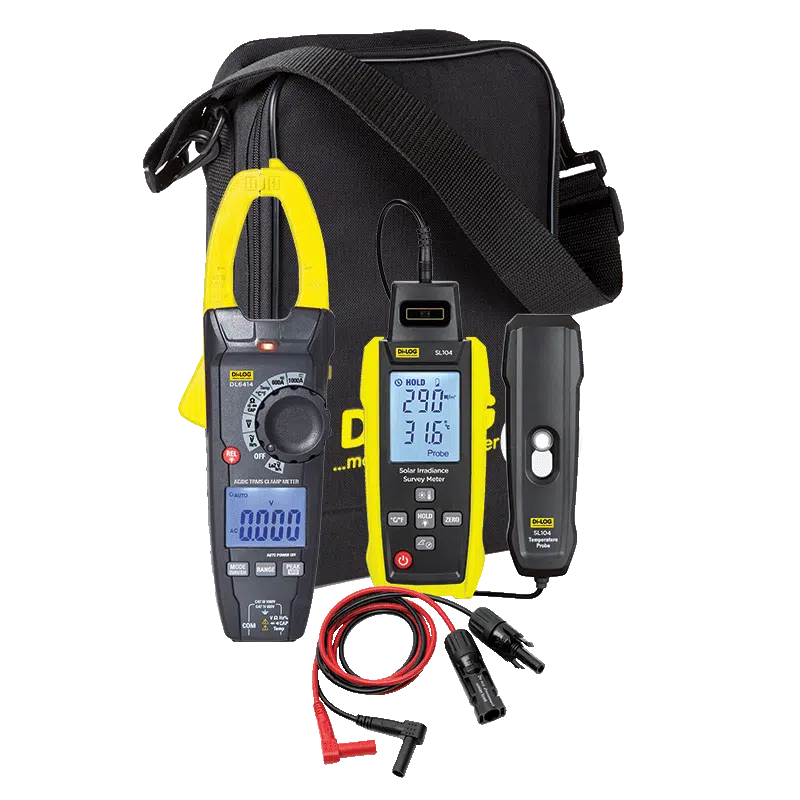

  • Kit Contains: SL104 Solar Irradiance Survey Meter, DL6414 TRMS 1000A AC/DC Clam Meter, SLLSC4 Type 4 Solar Test Lead Set, CCDL001 Test Kit Carry Case

The Di-Log SL350 Professional Plus Solar PV Test Kit is an advanced toolset tailored for precise installation and maintenance of solar PV systems. It features solar irradiance measurement up to 1400W/m², integrated and external cell temperature sensors, and a roof pitch inclinometer for accurate site assessment. The kit provides reliable AC/DC current and versatile voltage measurement with functions such as LoZ, inrush current, and variable frequency drive testing. Ideal for both domestic and commercial solar thermal and PV installations, it includes the SL104 Solar Irradiance Survey Meter, DL6414 TRMS 1000A AC/DC Clamp Meter, SLLSC4 Type 4 Solar Test Lead Set, and a durable carry case for professional use.

.

SL104
Colour Yellow/Black
Irradiance 1400W/m2
Integrated Temp. Probe -10°C to 50°C
External Temp Probe -30°C to 100°C
Inclination Measurement -90° to 90°
Compass Measurement 0° to 360°
Power Supply 4 x 1.5V AA
Dimensions 176(H) x 70(W) x 40(D) mm
DL6414
AC Current true RMS 0.001A - 1000.0A
DC Current 0.001A - 1000.0A
AC Voltage True RMS 0.001V - 1000V
DC Voltage 0.1mV - 1000V
LoZ 0.00V1 - 300.0V
Resistance 0.1Ω - 60.00MΩ
Capacitance 0.01nF - 100mF
Frequency
9.999Hz - 99.99kHz
Duty Cycle 10% - 90%
Temperature -20.0°C - 1000°C
Diode Test     0.3mA into 3.2V DC
Power supply     3 x AAA V batteries
Dimensions     250 x 78 x 40 mm
