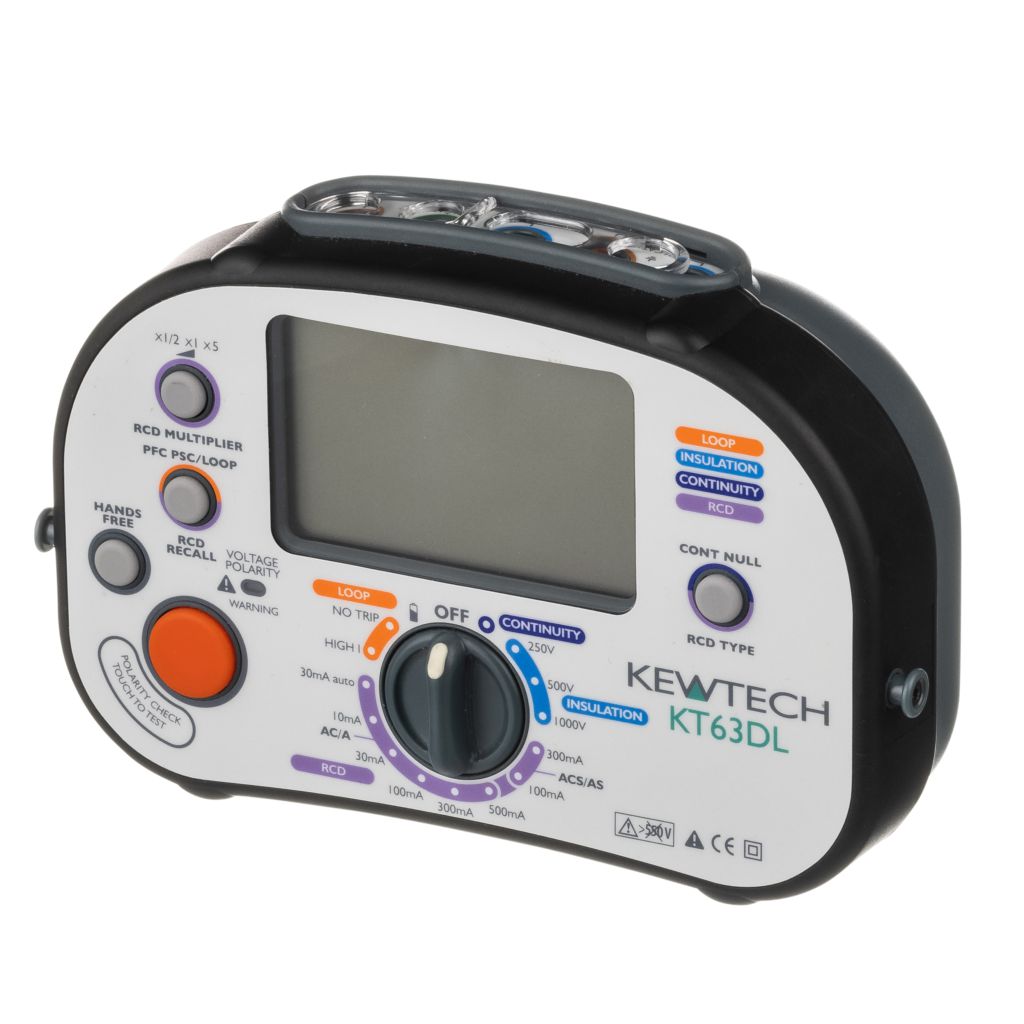

Kewtech KT63DL 5-in-1 Multifunction Installation Tester
5-in-1 Multifunction Installation Tester
Kewtech KT63DL
- Continuity - switchable buzzer and auto null
- Insulation - 250, 500 & 1000V with voltage warning LED and auto discharge
- Loop - ATT (low current), high current 0.01 ohm resolution
- Anti Trip Technology loop for full no trip Loop testing of RCDs with low susceptibility of RCD uplift and noise interference
- PSC/PFC - clear indication of what is being tested and displayed with loop reading
- RCD - Type AC, A, ACS, AS, auto & ramp
- Type AC RCDs - Tests 10mA, 30mA, 100mA, 300mA & 500mA
- Type A RCDs - Tests 10mA, 30mA, 100mA & 300mA
- RCD auto test mode for 30 mA RCDs
- RCD ramp test function
- Test leads auto-null for continuity mode
- Polarity check
- Instant correct wiring status check
The Kewtech KT63DL 5-in-1 Multifunction Installation Tester has a variety of features to help ensure accuracy of testing. It includes continuity functions with switchable buzzer and auto null, insulation testing up to 1000V with voltage warning LED, loop testing at 0.01 ohm resolution, and Anti Trip Technology loop for full no-trip loop testing of RCDs with low susceptibility of RCD uplift and noise interference. Polarity check and instant correct wiring status checks are also included.
.
| Ac Voltage Measurement | 250V AC |
| Batteries Included | Yes |
| Battery Level Indicator | Yes |
| Battery Size | AA |
| Battery Type | Alkaline |
| Colour | Black/Grey |
| Continuity Check | Yes |
| Continuity Range | 0.01 Ω - 1999 Ω |
| Display Type | LCD |
| Guarantee | 1 Year |
| IP Rating | IP54 |
| Insulation Resistance Measuring Range | 0.1 MΩ - 2000 MΩ |
| Insulation Test Voltage | 250V / 500V / 1000V |
| Loop Impedance Range | Hi Current 0.000 Ω - 500.0 Ω / No Trip 0.00 Ω - 500.0 Ω |
| Number of Batteries | 8 |
| Packaging Types | Each |
| Product Range | Multifunction Testers |
| Rcd Settings | ½ / x1 / x5 @ 0° and 180° / Auto and Ramp Tests |
| Rcd Test Range | 10 mA / 30 mA / 100 mA / 300 mA / 500 mA |
| Safety Range | CAT III 500V, CAT IV 300V |
| Standards | EN61010 |

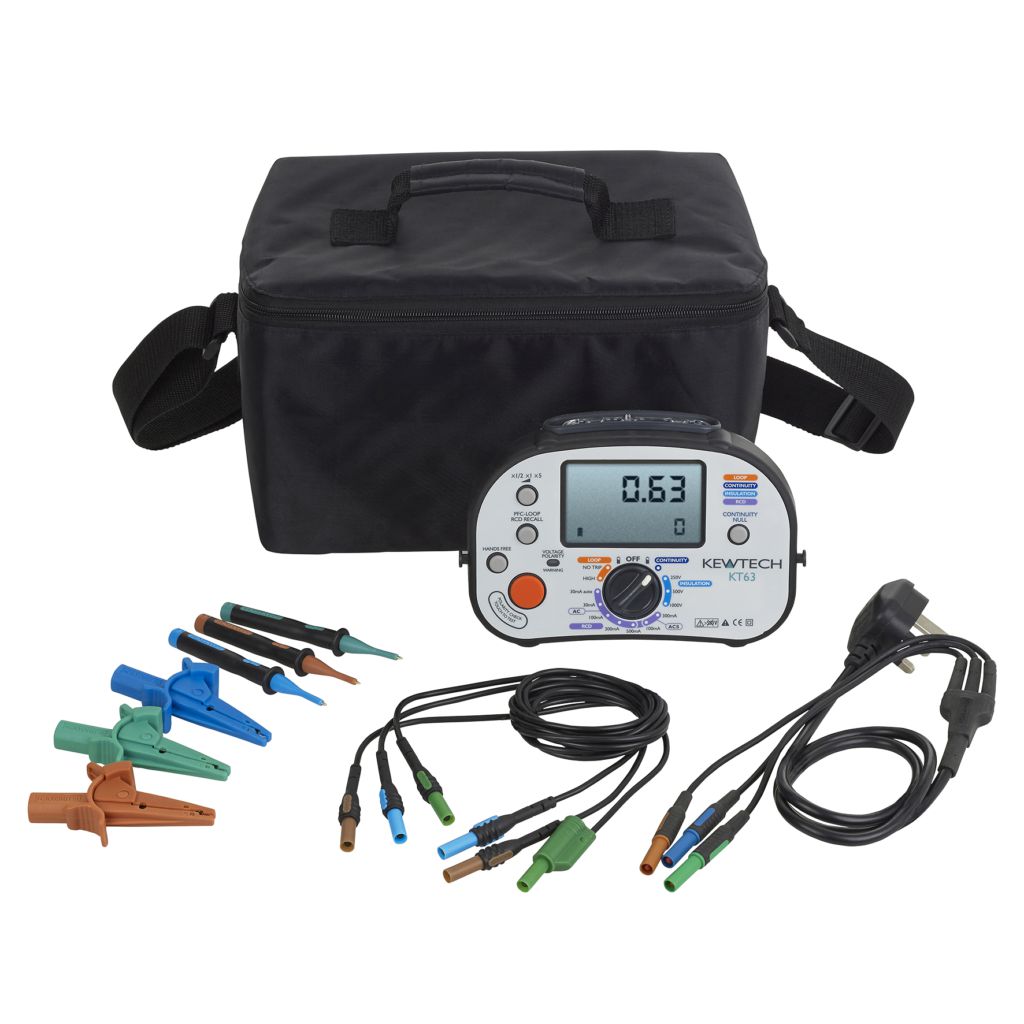

| Supplied With | ACC063 Distribution Board Test Lead Set, Mains Lead, Batteries, Instruction Manual, Soft Carry Case and Calibration Certificate |
