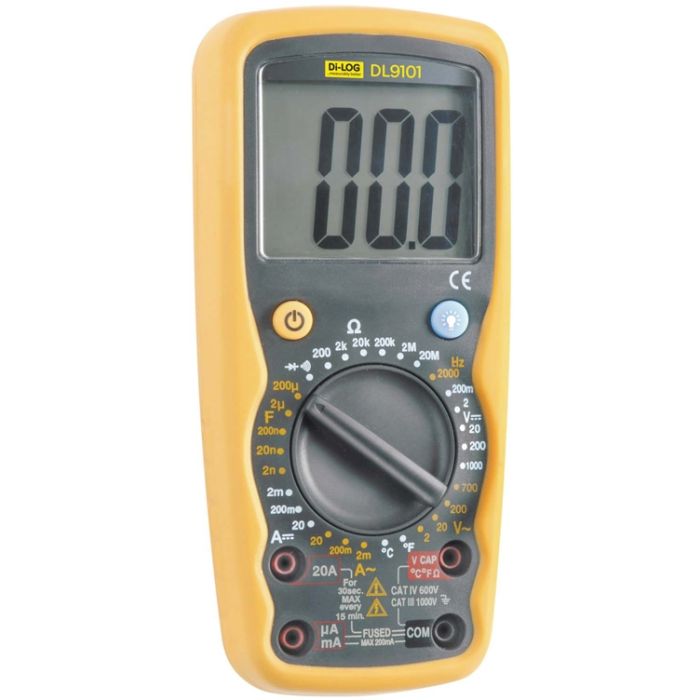

Di-Log DL9101 General Purpose Manual Ranging 1000V Multimeter
General Purpose Manual Ranging 1000V Multimeter
Di-Log DL9101
- Large LCD display
- Capacitance
- Auto power off
- Full range protection
- 2000 count LCD display
- Back lit LCD display
The Di-Log DL9101 Multimeter offers accurate readings with its large 2000 count LCD display and full range protection. It also features capacitance measurement and auto power off for convenient use. The backlit LCD display ensures easy reading in any lighting. Expertly designed for general purpose and up to 1000V manual ranging.
.
| AC current | 1 µA – 20 A |
| AC voltage | 0.1 mV – 700 V |
|
Capacitance |
1 pF – 200 µF |
| Continuity | Audible threshold > 50 Ω |
| DC current | 1 µA – 20 A |
| DC voltage | 0.1 mV – 1000 V |
| Diode test | 1 mA typical 2.8 V DC |
| Dimensions | 182mm(h) x 82mm(w) x 55mm(h) |
| Power supply | 1 x 9 V battery |
| Warranty | 2 Years |
