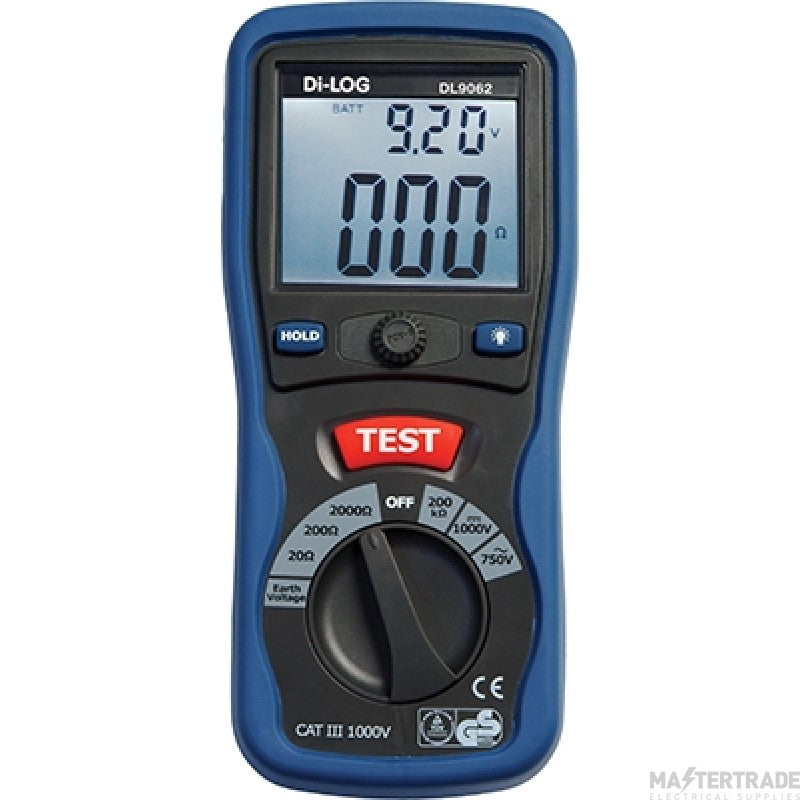

Di-Log DL9062 18th Edition Earth Resistance Tester
18th Edition Earth Resistance Tester
Di-Log DL9062
- Meets IEC1010-1, CAT III 1000V
- Kit includes 4 x Cables and 2 x Rods
- Large digital display with backlight
- Test hold function for easy opperation
- Zero Automatic adjustment
- Sampling Rate: 2.2 times per second
- Easy to carry testing package
- Over range indication
- Low battery indication
The Di-Log DL9062 18th Edition Earth Resistance Tester is the perfect tool for precise electrical readings. It meets IEC1010-1 standards and comes with 4 cables and 2 rods for easy use. The large digital display with backlight, test hold function, and zero automatic adjustment make it simple to operate. With a fast sampling rate of 2.2 times per second, over range and low battery indications, and a compact design, this testing kit is a must-have for professionals.
.
| Dimensions | 200mm(h) x 92mm(w) x 50mm(d) |
| Display | 3½ digit LCD 1999 digits |
| Earth Resistance |
20Ω (0.01Ω Resolution) 200Ω (0.1Ω Resolution) 2000Ω (1Ω Resolution) |
| Earth Voltage | 200V (0.1V Resolution) |
| Over voltage category | CAT III 1000 V |
| Power supply | 6 x 1.5 V, IEC LR |
| Over voltage category | CAT III 600 V |
| Voltage AC | 750V (1V Resolution) |
| Voltage DC | 1000V (1V Resolution) |
| Warranty | 2 Years |
