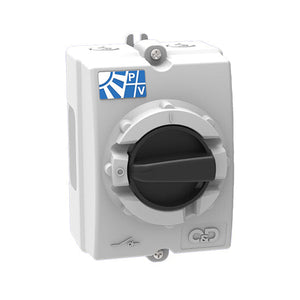

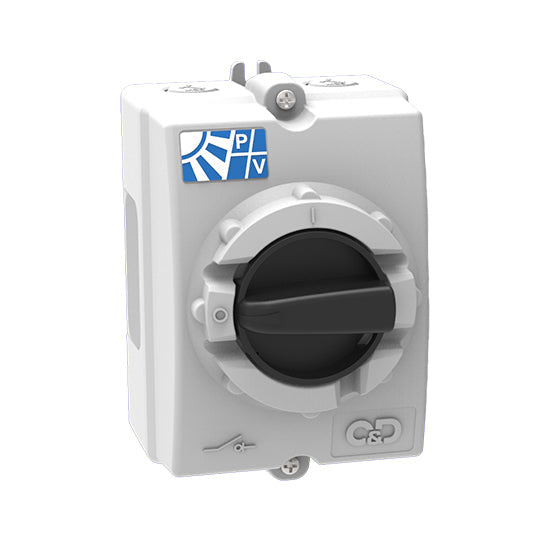

Craig & Derricott EPV162 16A 2 Pole DC Surface Mounting Isolator IP66 (PV)
16A 2 Pole DC Surface Mounting Isolator IP66 (PV)
Craig & Derricott EPV162
Solar power is an environmentally friendly method of producing electricity and is achieved using Photovoltaic (PV) cells that capture sunlight and convert it to electricity. By combining cells into an array, different voltages and current combinations can be achieved.
Once installed an array will continue to generate voltage and current and it is therefore essential to isolate the array in the event of a fault or for maintenance purposes. To enable this Craig & Derricott have developed a range of DC switch-disconnectors to manage this specific application.
This range of PV (DC) isolators are supplied in moulded plastic IP65 enclosures in a light grey (RAL 7035) finish. All units have a padlockable handle which allow for the insertion of up to three padlocks in the ‘Off’ position thus preventing the isolator being switched to the ‘On’ position. All units are interlocked in the ON position preventing the lid from being removed.
Compliant to IEC / BS EN 60947-3.
- Specifically designed for photovoltaic systems
- Insulated thermoplastic enclosure
|Brand||Craig & Derricott|
|Dimensions||(H)149 mm x (W)100 mm x (D)108.5 mm|
|Number of Poles||2|
